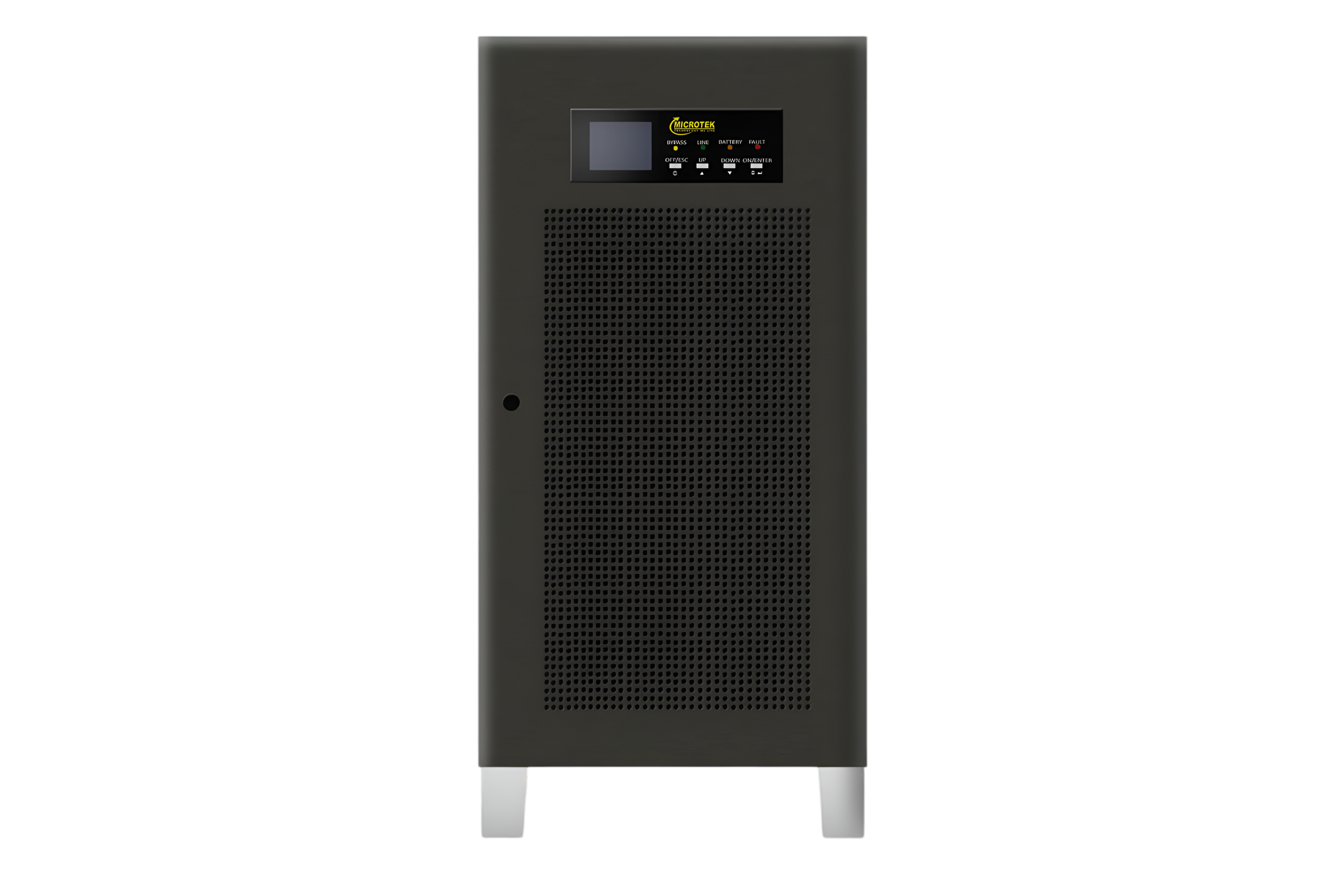

Microtek 10KVA Online UPS

Microtek ON LINE UPS 10KVA, 3PH:3PH, 360V – iMAXX SERIES

Description & Key Features:

The Microtek iMAXX Series 10KVA Online UPS is a high-performance three-phase input, three-phase output uninterruptible power supply designed for critical applications requiring stable and reliable power. It features True Online Double Conversion Technology, ensuring seamless power delivery to protect sensitive equipment.

Technical Specifications:

• Capacity: 10KVA / 8KW

• Topology: True Online Double Conversion

• Input Phase: 3 Phase (R-Y-B + N)

• Input Voltage Range: 360V – 480V AC

• Output Phase: 3 Phase (R-Y-B + N)

• Output Voltage: 400V ± 1% AC

• Power Factor: 0.8

• Battery Voltage: 360V DC

• Battery Type: External (30 x 12V Batteries Recommended)

• Waveform: Pure Sine Wave

• Efficiency: ≥ 94%

• Transfer Time: 0ms (Seamless Switching)

• Display: LCD Panel for Monitoring (Voltage, Frequency, Load, Battery Status)

• Communication: RS232, USB (SNMP Optional)

• Protections:

  • Overload & Short Circuit

  • Input Over/Under Voltage

  • Battery Overcharge/Deep Discharge

  • Temperature Protection

• Applications: Data Centers, Industrial Equipment, IT Infrastructure, Medical Equipment, and Critical Loads
