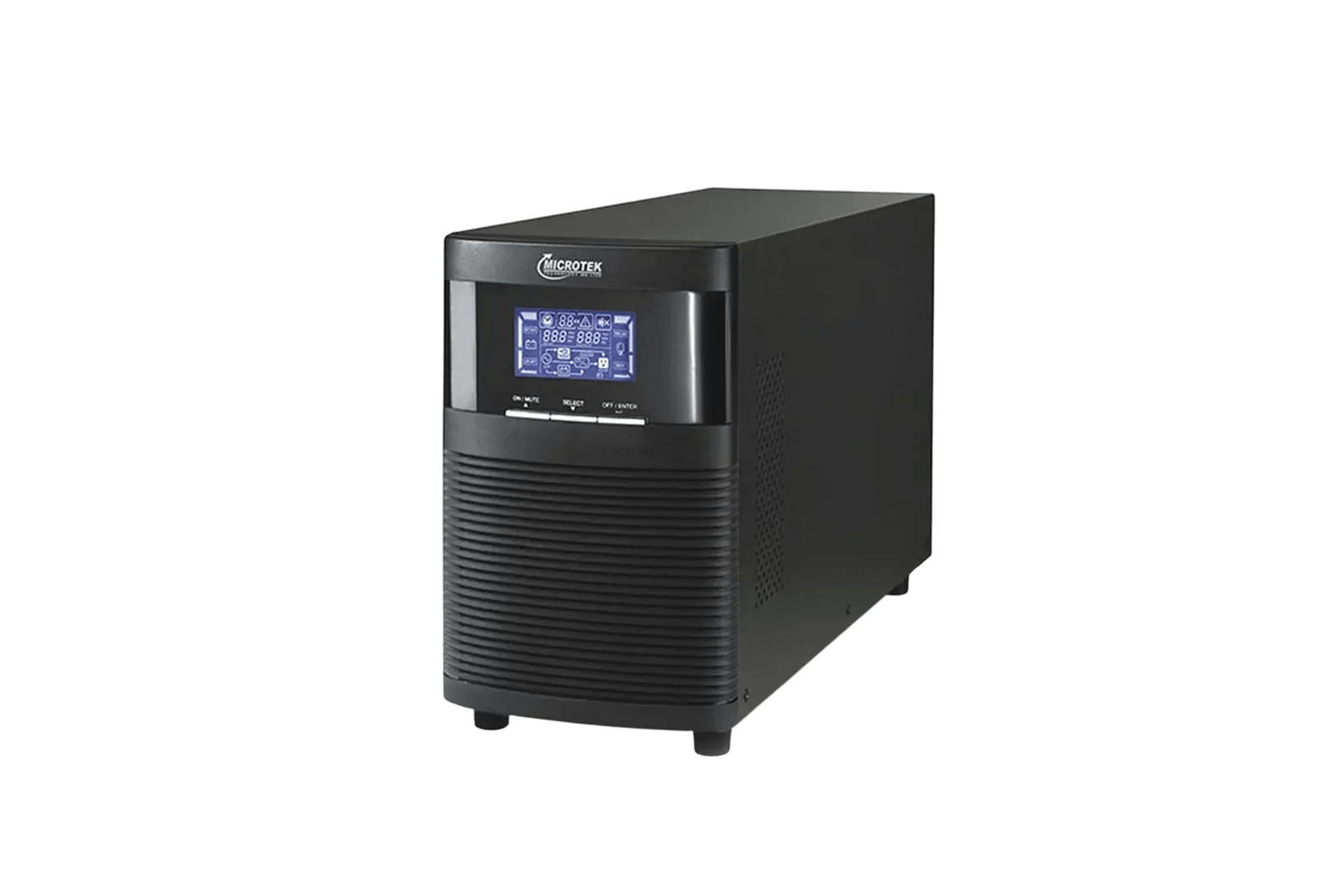

The Microtek ONLINE UPS E² Series 1KVA 24VDC-IB is a high-frequency uninterruptible power supply designed to provide reliable and pure sine wave power for critical applications such as computer networks, servers, cyber cafes, ATM machines, and CCTV cameras.
- Model Name: ONLINE UPS E²-IB
- Rated Capacity: 1 KVA / 800 Watts
- Phase: Single Phase Input, Single Phase Output
- DC Voltage: 24 VDC (utilizing two in-built SMF 12V / 9AH batteries)
- Input Voltage Range: 110VAC ± 5% to 300VAC ± 5%
- Input Frequency Range: 40Hz to 70Hz
- Output Voltage Options: Selectable between 200, 208, 220, 230, and 240VAC
- AC Voltage Regulation (Battery Mode): ±1%
- Output Frequency (Battery Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
- Current Crest Ratio: 3:1
- Harmonic Distortion: ≤2% THD for linear loads; ≤4% THD for non-linear loads
- Transfer Time: Zero transfer time from AC mode to battery mode; inverter to bypass transfer typically within 2.5ms
- Waveform (Battery Mode): Pure Sinewave
- Efficiency: 88% in AC mode; 83% in battery mode
- Operating Humidity: 20% to 95% RH at 0-40°C (non-condensing)
- Noise Level: Less than 50dBA at 1 meter (with fan speed control)
- Dimensions (L x W x H): 282 x 145 x 221 mm
- Net Weight: 9.8 kg
