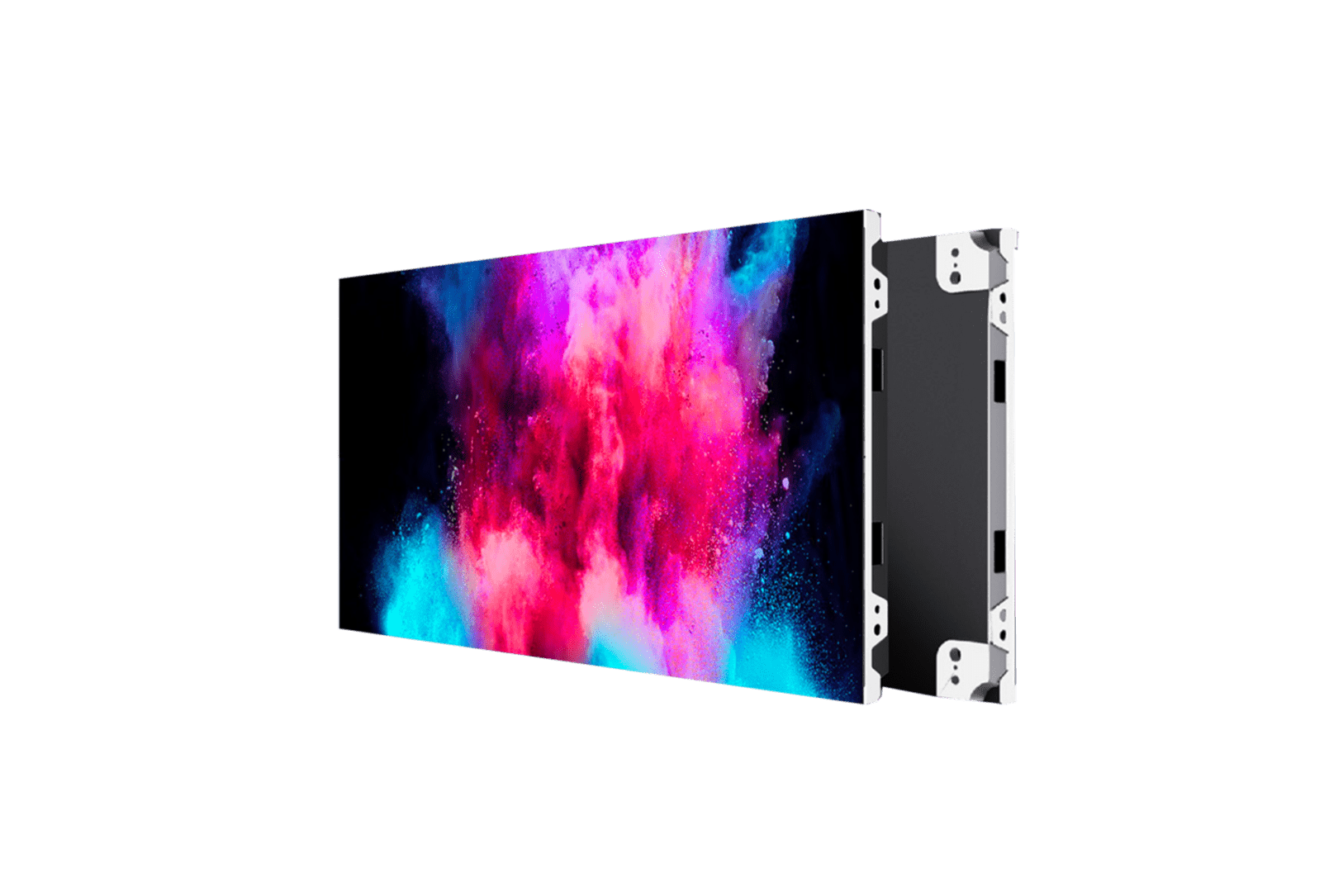

The Qlite Outdoor LED Wall (P4) is a high-performance display solution engineered for vibrant, high-visibility outdoor applications. It offers an excellent blend of durability, brightness, and precision, making it ideal for advertising, public information displays, and large-scale digital signage.
Key Features:
- Pixel Configuration: 3-in-1 SMD (NationStar)
- Pixel Pitch: 4 mm – perfect for high-resolution visuals at close to medium viewing distances
- Module Resolution (WxH): 80 × 80 pixels
- Module Size: 320 mm × 320 mm
- Module Weight: 1.3 kg

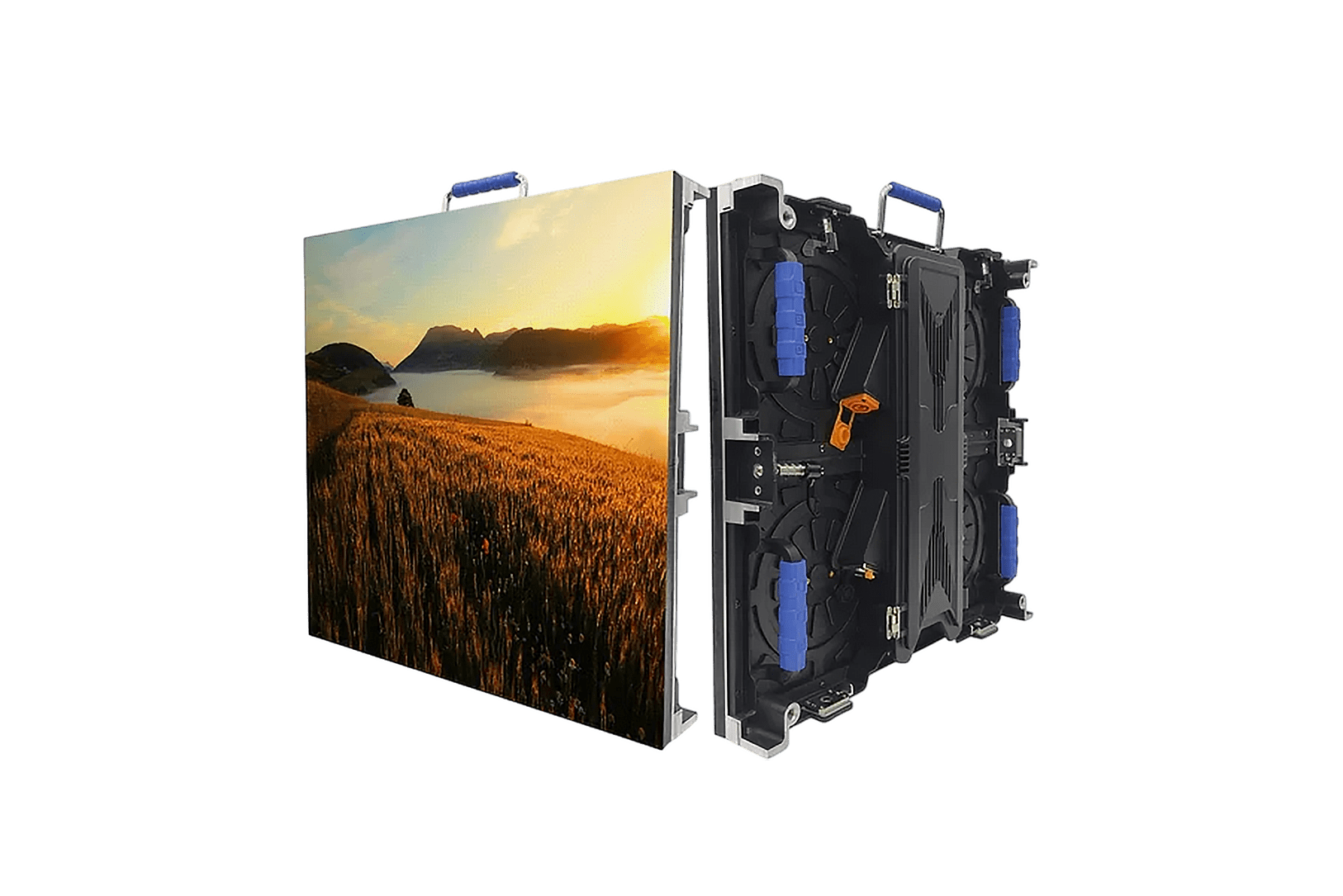

Cabinet Details:
- Cabinet Resolution (WxH): 240 × 240 pixels
- Cabinet Size: 960 mm × 960 mm
- Cabinet Weight: 26 kg (Die-cast Aluminum) / 35 kg (MS)
- Material Options: MS or Die-cast Aluminum for different structural and weight preferences
Visual Quality:
- Pixel Density: 62,608 pixels/m²
- Brightness: ≥6500 nits – ensures readability even in direct sunlight
- Color Temperature: 8000K – 10000K
- Brightness Control: Automatic for adaptive visibility in changing light conditions
- Viewing Angle: 160° horizontal and vertical – wide visibility from any angle
- Viewing Distance: ≥4 meters
- Brightness Uniformity: ≥95%
- Chromaticity Uniformity: ±0.003 Cx, Cy
- Contrast Ratio: 6000:1
- LED Luminance Center Deviation: ≤3%
Performance:
- Max Power Consumption: 800 W/m²
- Average Power Consumption: 255 W/m²
- Power Supply: Meanwell, 200–240V AC ±10%
- Drive Mode: Constant Current Drive
- Driving Method: 1/10 Scan (10s)
- Frame Rate: ≥60 Hz
- Refresh Rate: ≥1920 Hz / ≥3840 Hz – suitable for high-speed video playback
Durability & Lifespan:
- IP Rating: IP65 (Front and Rear) – completely weatherproof
- Operating Temperature: -35°C to +60°C
- Storage Temperature: -30°C to +60°C
- Operating/Storage Humidity: 10% – 95% RH
- Lifetime: 100,000 hours
